GrafX2: main.c File Reference

Program entry point, global variables and global functions. More...

#include <time.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <signal.h>
#include <unistd.h>
#include <endian.h>
#include "gfx2log.h"
#include "gfx2mem.h"
#include "const.h"
#include "struct.h"
#include "global.h"
#include "graph.h"
#include "misc.h"
#include "init.h"
#include "buttons.h"
#include "engine.h"
#include "pages.h"
#include "loadsave.h"
#include "loadsavefuncs.h"
#include "screen.h"
#include "errors.h"
#include "readini.h"
#include "saveini.h"
#include "io.h"
#include "text.h"
#include "setup.h"
#include "windows.h"
#include "brush.h"
#include "palette.h"
#include "realpath.h"
#include "unicode.h"
#include "input.h"
#include "help.h"
#include "filesel.h"
#include "factory.h"

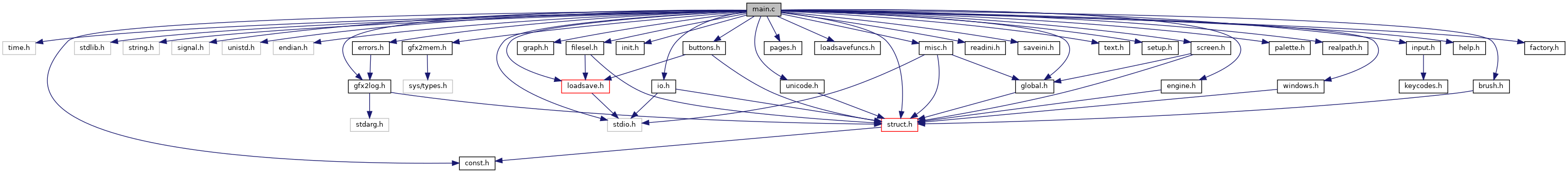

Include dependency graph for main.c:

Macros
#define	GLOBAL_VARIABLES
	declare global variables in main.c More...

#define	ARRAY_SIZE(x) (int)(sizeof(x) / sizeof(x[0]))

#define	CT_ASSERT(e) extern char (ct_assert(void)) [sizeof(char[1 - 2!(e)])]

#define	FREE_POINTER(p) free(p); p = NULL
	Free the memory and make sure the pointer is set to NULL. More...

Enumerations
enum	CMD_PARAMS { CMDPARAM_HELP , CMDPARAM_MODE , CMDPARAM_PIXELRATIO_TALL , CMDPARAM_PIXELRATIO_WIDE , CMDPARAM_PIXELRATIO_DOUBLE , CMDPARAM_PIXELRATIO_TRIPLE , CMDPARAM_PIXELRATIO_QUAD , CMDPARAM_PIXELRATIO_TALL2 , CMDPARAM_PIXELRATIO_TALL3 , CMDPARAM_PIXELRATIO_WIDE2 , CMDPARAM_RGB , CMDPARAM_GAMMA , CMDPARAM_SKIN , CMDPARAM_SIZE , CMDPARAM_VERBOSE }

Functions
void	Display_syntax (void)
	Show the command line syntax and available video modes. More...

void	Error_function (int error_code, const char filename, int line_number, const char function_name)
	Helper function used by the macro Error. More...

int	Analyze_command_line (int argc, char argv[], char filenames[], char directories[], const char videomode_arg, int pixel_ratio)
	Parse the command line. More...

	CT_ASSERT (sizeof(T_Components)==3)

	CT_ASSERT (sizeof(T_Palette)==768)

int	Init_program (int argc, char *argv[])
	Initialize the program. More...

void	Program_shutdown (void)
	Program Shutdown. More...

int	main (int argc, char *argv[])
	Program entry point. More...

Variables
char	Program_version []

static int	setsize_width

static int	setsize_height

struct {
const char * param

int id

}	cmdparams []

Detailed Description

Program entry point, global variables and global functions.

Macro Definition Documentation

◆ GLOBAL_VARIABLES

#define GLOBAL_VARIABLES

declare global variables in main.c

◆ ARRAY_SIZE

#define ARRAY_SIZE ( x ) (int)(sizeof(x) / sizeof(x[0]))

◆ CT_ASSERT

#define CT_ASSERT ( e ) extern char (*ct_assert(void)) [sizeof(char[1 - 2*!(e)])]

◆ FREE_POINTER

#define FREE_POINTER ( p ) free(p); p = NULL

Free the memory and make sure the pointer is set to NULL.

Enumeration Type Documentation

◆ CMD_PARAMS

enum CMD_PARAMS

Enumerator
CMDPARAM_HELP
CMDPARAM_MODE
CMDPARAM_PIXELRATIO_TALL
CMDPARAM_PIXELRATIO_WIDE
CMDPARAM_PIXELRATIO_DOUBLE
CMDPARAM_PIXELRATIO_TRIPLE
CMDPARAM_PIXELRATIO_QUAD
CMDPARAM_PIXELRATIO_TALL2
CMDPARAM_PIXELRATIO_TALL3
CMDPARAM_PIXELRATIO_WIDE2
CMDPARAM_RGB
CMDPARAM_GAMMA
CMDPARAM_SKIN
CMDPARAM_SIZE
CMDPARAM_VERBOSE

Function Documentation

◆ Display_syntax()

void Display_syntax ( void )

Show the command line syntax and available video modes.

Output to standard outout (stdout) and show a message box under MS Windows, where standard output is not available

References GFX2_MB_INFO, GFX2_MessageBox(), Mode_label(), and Nb_video_modes.

Referenced by Analyze_command_line(), and Error_function().

◆ Error_function()

void Error_function	(	int	error_code,
		const char *	filename,
		int	line_number,
		const char *	function_name
	)

Helper function used by the macro Error.

◆ Analyze_command_line()

int Analyze_command_line	(	int	argc,
		char *	argv[],
		char *	filenames[],
		char *	directories[],
		const char **	videomode_arg,
		int *	pixel_ratio
	)

Parse the command line.

Parameters

argc	argument count
argv	argument values
filenames	pointers to receive file names
directories	pointers to receive file directories
videomode_arg	pointer to receive the -mode argument
pixel_ratio	pointer to receive the pixel ratio requested

Returns: the number of file to open (0, 1 or 2)

Referenced by Init_program().

◆ CT_ASSERT() [1/2]

CT_ASSERT ( sizeof(T_Components) = =3 )

◆ CT_ASSERT() [2/2]

CT_ASSERT ( sizeof(T_Palette) = =768 )

◆ Init_program()

int Init_program	(	int	argc,
		char *	argv[]
	)

Initialize the program.

Parameters

argc	command line argument count
argv	command line argument values

Returns: 0 on fail; 1 on success

References Airbrush_delay, Airbrush_mode, Airbrush_mono_flow, Airbrush_multi_flow, Airbrush_size, Allow_drag_and_drop(), T_Config::Allow_multi_shortcuts, Analyze_command_line(), Back_color, T_Page::Background_transparent, T_Document::backups, Best_color_range(), Brush, Brush_colormap, Brush_file_directory, Brush_fileformat, Brush_filename, Brush_filename_unicode, Brush_height, Brush_original_pixels, Brush_selector, Brush_width, BUTTON_DRAW, Button_Message_initial(), Button_Page(), BUTTON_PAGE, BUTTON_PAL_LEFT, BUTTON_PAL_RIGHT, BUTTON_RELEASED, Capture_brush(), Check_menu_mode(), Check_recovery(), Colorize_current_mode, Colorize_mode, Colorize_opacity, Compute_colorize_table(), Compute_limits(), Compute_magnifier_data(), Compute_menu_offsets(), Compute_optimal_menu_colors(), Compute_paintbrush_coordinates(), Config, Config_directory, CONTEXT_PALETTE, Convert_videomode_arg(), Copy_preset_sieve(), Current_gradient, Current_help_section, T_Document::current_layer, Current_resolution, Cursor_hidden, Cursor_shape, CURSOR_SHAPE_TARGET, Cycling_mode, Data_directory, DEFAULT_FILEFORMAT, DEFAULT_FONT_FILENAME, T_Config::Default_mode_layers, T_Gui_skin::Default_palette, DEFAULT_SKIN_FILENAME, DEFAULT_ZOOM_FACTOR, DEFAULTPAL_FILENAME, Define_icon(), Destroy_context(), T_Selector_settings::Directory, T_Selector_settings::Directory_unicode, Display_all_screen(), Display_cursor(), T_Config::Display_image_limits, Display_image_limits(), Display_menu(), Display_paintbrush_in_menu(), Display_pixel(), Display_sprite_in_menu(), Draw_menu_button(), Effect_function, End_of_modification(), Error, ERROR_CFG_CORRUPTED, ERROR_CFG_MISSING, ERROR_CFG_OLD, ERROR_COMMAND_LINE, ERROR_FORBIDDEN_MODE, ERROR_GUI_MISSING, ERROR_MEMORY, T_Config::Fav_menu_colors, File_error, T_IO_Context::File_name_unicode, T_Document::fileformat, First_color_in_palette, T_Config::Font_file, Fore_color, T_IO_Context::Format, FORMAT_ALL_IMAGES, FORMAT_ALL_PALETTES, T_Selector_settings::Format_filter, FORMAT_PAL, Get_config_directory(), Get_current_directory(), Get_data_directory(), Get_program_directory(), Get_Unicode_Filename(), getMacosUserFolder(), Gfx, GFX2_DEBUG, GFX2_ERROR, GFX2_Get_Window_Handle(), GFX2_Log(), GFX2_malloc, GFX2_verbosity_level, GFX2_WARNING, Gradient_basic(), Gradient_bounds_range, Gradient_function, Gradient_lower_bound, Gradient_pixel, Gradient_random_factor, Gradient_upper_bound, T_Page::Gradients, Gui_loading_error_message, Help_position, Hide_cursor, Horizontal_line_buffer, T_Document::image_height, T_Document::image_is_modified, T_Page::Image_mode, IMAGE_MODE_ANIMATION, IMAGE_MODE_LAYERED, T_Document::image_width, Init_all_backup_lists(), Init_brush_container(), Init_buttons(), Init_context_layered_image(), Init_list_of_pages(), Init_mode_video(), Init_operations(), Init_paintbrushes(), Init_sighandler(), Init_text(), Initial_directory, INITIAL_SEPARATOR_PROPORTION, Keyboard_click_allowed, T_Document::layers_visible, T_Document::layers_visible_backup, LEFT_SIDE, Load_CFG(), Load_font(), Load_graphics(), Load_image(), Load_INI(), Load_Unicode_fonts(), T_Document::magnifier_factor, T_Document::magnifier_height, T_Document::magnifier_mode, T_Document::magnifier_offset_X, T_Document::magnifier_offset_Y, T_Document::magnifier_width, Main, Main_screen, Mask_mode, MAX_PAINTBRUSH_SIZE, MC_Black, MC_Dark, MC_Light, MC_White, Menu_font, Menu_is_visible, MENU_SPRITE_VERTICAL_PALETTE_SCROLL, Mouse_X, Mouse_Y, No_effect(), NULL, T_Selector_settings::Offset, T_Document::offset_X, T_Document::offset_Y, Open_file_read(), T_Config::Opening_message, OPERATION_3_POINTS_CURVE, OPERATION_CONTINUOUS_DRAW, OPERATION_LINE, Operation_stack_size, T_List_of_pages::Pages, PAINTBRUSH_HEIGHT, Paintbrush_height, Paintbrush_hidden, Paintbrush_offset_X, Paintbrush_offset_Y, Paintbrush_shape, PAINTBRUSH_SHAPE_ROUND, Paintbrush_sprite, PAINTBRUSH_WIDTH, Paintbrush_width, Paintbrush_X, Paintbrush_Y, T_Document::palette, T_Config::Palette_cells_X, T_Config::Palette_cells_Y, Palette_selector, T_Config::Palette_vertical, Pixel_height, PIXEL_MAX, Pixel_ratio, PIXEL_SIMPLE, Pixel_width, T_Selector_settings::Position, Program_version, Quick_shade_mode, Quit_is_required, Quitting, T_Gradient_array::Range, Redraw_layered_image(), Remove_duplicate_shortcuts(), render_scale_x, render_scale_y, Resolution_in_command_line, T_Document::safety_backup_prefix, SAFETYBACKUP_PREFIX_A, SAFETYBACKUP_PREFIX_B, Screen_height, Screen_width, Select_button(), Selected_curve_mode, Selected_freehand_mode, Selected_line_mode, T_Document::selector, T_Document::separator_position, T_Document::separator_proportion, Set_all_video_modes(), Set_config_defaults(), Set_current_skin(), setsize_height, setsize_width, Shade_mode, Sieve_mode, T_Config::Skin_file, Smear_brush, Smear_brush_height, Smear_brush_width, Smear_mode, Smooth_mode, Snap_height, Snap_mode, Snap_offset_X, Snap_offset_Y, Snap_width, Spare, Tiling_mode, T_Document::time_of_safety_backup, T_Page::Transparent_color, T_IO_Context::Type, Unicode_strdup(), Verbose_message(), Video_mode, T_Config::Window_pos_x, T_Config::Window_pos_y, Windows_open, and T_Document::X_zoom.

Referenced by main().

◆ Program_shutdown()

void Program_shutdown ( void )

Program Shutdown.

Free all allocated resources.

References T_Config::Auto_save, T_Document::backups, T_Config::Bookmark_directory, Bound_script, Brush, Brush_file_directory, Brush_filename, Brush_filename_unicode, Brush_original_pixels, Brush_selector, Change_directory(), Config, Config_directory, Data_directory, Delete_safety_backups(), T_Selector_settings::Directory, T_Selector_settings::Directory_unicode, Error, ERROR_MISSING_DIRECTORY, T_Selector_settings::filename, T_Selector_settings::filename_unicode, T_Config::Font_file, T_Unicode_Font::FontData, FREE_POINTER, Gfx, GFX2_Get_Window_Handle(), Horizontal_line_buffer, T_Bitmap::Image, Initial_directory, Main, Main_visible_image_backup, Main_visible_image_depth_buffer, Menu_font, NB_BOOKMARKS, T_Unicode_Font::Next, NULL, Paintbrush_sprite, Palette_selector, Save_CFG(), Save_INI(), T_Config::Scripts_directory, T_Document::selector, Set_number_of_backups(), T_Config::Skin_file, Smear_brush, Spare, Unicode_fonts, Uninit_text(), T_Document::visible_image, T_Config::Window_pos_x, and T_Config::Window_pos_y.

Referenced by main().

◆ main()

int main	(	int	argc,
		char *	argv[]
	)

Program entry point.

References GFX2_DEBUG, GFX2_Log(), Init_program(), Init_Win32(), Main_handler(), NULL, and Program_shutdown().

Variable Documentation

◆ Program_version

char Program_version[]

extern

Referenced by Init_program().

◆ setsize_width

int setsize_width

static

Referenced by Analyze_command_line(), and Init_program().

◆ setsize_height

int setsize_height

static

Referenced by Analyze_command_line(), and Init_program().

◆ param

const char* param

Referenced by Analyze_command_line().

◆ id

int id

Referenced by GS_Generate().

◆

struct { ... } cmdparams[]

Initial value:

= {
    {"?", CMDPARAM_HELP},
    {"h", CMDPARAM_HELP},
    {"H", CMDPARAM_HELP},
    {"help", CMDPARAM_HELP},
    {"mode", CMDPARAM_MODE},
    {"tall", CMDPARAM_PIXELRATIO_TALL},
    {"wide", CMDPARAM_PIXELRATIO_WIDE},
    {"double", CMDPARAM_PIXELRATIO_DOUBLE},
    {"triple", CMDPARAM_PIXELRATIO_TRIPLE},
    {"quadruple", CMDPARAM_PIXELRATIO_QUAD},
    {"tall2", CMDPARAM_PIXELRATIO_TALL2},
    {"tall3", CMDPARAM_PIXELRATIO_TALL3},
    {"wide2", CMDPARAM_PIXELRATIO_WIDE2},
    {"rgb", CMDPARAM_RGB},
    {"gamma", CMDPARAM_GAMMA},
    {"skin", CMDPARAM_SKIN},
    {"size", CMDPARAM_SIZE},
    {"verbose", CMDPARAM_VERBOSE},
}
