GrafX2: engine.h File Reference

Utility functions for the menu and all windows. More...

#include "struct.h"

Include dependency graph for engine.h:

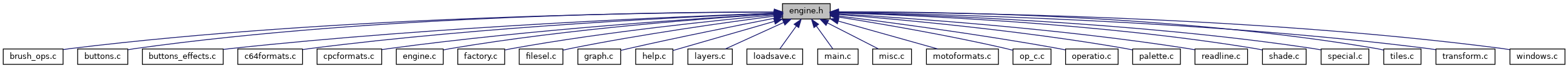

This graph shows which files directly or indirectly include this file:

Functions
void	Main_handler (void)
	Main handler for everything. This is the main loop of the program. More...

void	Draw_menu_button (byte btn_number, byte pressed)
	Draw a menu button, selected or not. More...

void	Unselect_button (int btn_number)
	Deselect a button. More...

void	Select_button (int btn_number, byte click)
	Select a button and disable all his family (for example, selecting "freehand" unselect "curves", "lines", ...) More...

void	Open_window (word width, word height, const char *title)
	Open a GUI window. More...

void	Close_window (void)
	Close a window previously open with Open_window() More...

void	Open_popup (word x_pos, word y_pos, word width, word height)
	Open a popup window. More...

void	Close_popup (void)

void	Window_draw_normal_bouton (word x_pos, word y_pos, word width, word height, const char *title, byte undersc_letter, byte clickable)

void	Window_select_normal_button (word x_pos, word y_pos, word width, word height)

void	Window_unselect_normal_button (word x_pos, word y_pos, word width, word height)

void	Window_draw_palette_bouton (word x_pos, word y_pos)

void	Compute_slider_cursor_length (T_Scroller_button *button)

void	Window_draw_slider (T_Scroller_button *button)

void	Window_draw_scroller_button (T_Scroller_button *button)

void	Window_input_content (T_Special_button button, const char content)

void	Window_clear_input_button (T_Special_button *button)

void	Window_draw_input_bouton (word x_pos, word y_pos, word width_in_characters)

T_Normal_button *	Window_set_normal_button (word x_pos, word y_pos, word width, word height, const char *title, byte undersc_letter, byte clickable, word shortcut)

T_Normal_button *	Window_set_repeatable_button (word x_pos, word y_pos, word width, word height, const char *title, byte undersc_letter, byte clickable, word shortcut)

T_Palette_button *	Window_set_palette_button (word x_pos, word y_pos)

void	Window_clear_tags (void)

void	Tag_color_range (byte start, byte end)

T_Scroller_button *	Window_set_scroller_button (word x_pos, word y_pos, word height, word nb_elements, word nb_elements_visible, word initial_position)

T_Scroller_button *	Window_set_horizontal_scroller_button (word x_pos, word y_pos, word width, word nb_elements, word nb_elements_visible, word initial_position)

T_Special_button *	Window_set_special_button (word x_pos, word y_pos, word width, word height, word shortcut)

T_Special_button *	Window_set_input_button_s (word x_pos, word y_pos, word width_in_characters, word shortcut)

T_Special_button *	Window_set_input_button (word x_pos, word y_pos, word width_in_characters)

T_Dropdown_button *	Window_set_dropdown_button (word x_pos, word y_pos, word width, word height, word dropdown_width, const char *label, byte display_choice, byte display_centered, byte display_arrow, byte active_button, byte bottom_up)

void	Window_dropdown_add_item (T_Dropdown_button dropdown, word btn_number, const char label)
	Adds an item to a dropdown menu. More...

void	Window_dropdown_clear_items (T_Dropdown_button *dropdown)

T_Dropdown_choice *	Dropdown_activate (T_Dropdown_button *button, short off_x, short off_y)
	Displays a dropped-down menu and handles the UI logic until the user releases a mouse button. More...

T_List_button *	Window_set_list_button (T_Special_button entry_button, T_Scroller_button scroller, Func_draw_list_item draw_list_item, byte color_index)

void	Window_redraw_list (T_List_button *list)

byte	Window_click_in_rectangle (short start_x, short start_y, short end_x, short end_y)

short	Wait_click_in_palette (T_Palette_button *button)

short	Window_normal_button_onclick (word x_pos, word y_pos, word width, word height, short btn_number)

void	Get_color_behind_window (byte color, byte click)

short	Window_clicked_button (void)

int	Button_under_mouse (void)
	Guess the number of the button that was just clicked. More...

short	Window_get_button_shortcut (void)

short	Window_get_clicked_button (void)

void	Remap_window_backgrounds (const byte *conversion_table, int Min_Y, int Max_Y)
	Remaps all the colors from the window background buffers from row Min_Y to row Max_Y. More...

void	Remap_UI_in_window_backgrounds (const byte *conversion_table)
	Remaps only UI elements (Windows + Menu) in all window background buffers. More...

void	Pixel_background (int x_pos, int y_pos, byte color)
	Draw a pixel in a saved screen block (when you sort colors in the palette, for example) More...

void	Status_print_palette_color (byte color)
	Updates the status bar line with a color number. More...

void	Delay_with_active_mouse (int delay)
	Puts the user in wait mode for the specified time ( in 1/100s), though the mouse still works. More...

void	Compute_menu_offsets (void)
	Based on which toolbars are visible, updates their offsets and computes Menu_height and Menu_Y. More...

void	Set_bar_visibility (word bar, int visible, int with_redraw)
	Shows or hides a tolbar from the menu. More...

int	Check_menu_mode (void)
	Checks if the current menu toolbars suit the current image type : layered vs anim. More...

Detailed Description

Utility functions for the menu and all windows.

Function Documentation

◆ Main_handler()

void Main_handler ( void )

Main handler for everything. This is the main loop of the program.

Todo:: create a SPECIAL_ACTIONS for Copy and Paste ?

References Allow_color_change_during_operation, Any_effect_active(), T_Config::Auto_discontinuous, Bigger_paintbrush(), Block, Brush, Brush_colormap, Brush_fileformat, Brush_filename, Brush_filename_unicode, Brush_height, Brush_offset_X, Brush_offset_Y, Brush_original_pixels, Brush_width, BUTTON_CHOOSE_COL, Button_Colorize_menu(), Button_Colorize_mode(), BUTTON_DRAW, BUTTON_EFFECTS, Button_Grid_menu(), BUTTON_LAYER_SELECT, Button_Mask_menu(), Button_Mask_mode(), Button_Quick_shade_menu(), Button_Quick_shade_mode(), Button_Quit(), BUTTON_QUIT, Button_Shade_menu(), Button_Shade_mode(), Button_Show_grid(), Button_Sieve_menu(), Button_Sieve_mode(), Button_Smear_mode(), Button_Smooth_menu(), Button_Smooth_mode(), Button_Snap_mode(), Button_Stencil_menu(), Button_Stencil_mode(), Button_Tilemap_menu(), Button_Tilemap_mode(), Button_Tiling_menu(), Button_Tiling_mode(), Button_under_mouse(), Buttons_Pool, Change_paintbrush_shape(), Check_menu_mode(), Compute_limits(), Compute_optimal_menu_colors(), Compute_paintbrush_coordinates(), Config, Confirmation_box(), CONTEXT_BRUSH, Current_operation, Cursor_hidden, Cursor_in_menu, Cursor_in_menu_previous, Cursor_shape, CURSOR_SHAPE_HOURGLASS, Cycling_mode, Default_window_height, Default_window_width, Destroy_context(), Display_all_screen(), Display_cursor(), T_Config::Display_image_limits, Display_image_limits(), Display_menu(), Draw_menu_button(), Drop_file_name, Drop_file_name_unicode, Effects_off(), End_of_modification(), Exclude_color, File_error, T_IO_Context::File_name_unicode, Find_last_separator(), Find_last_separator_unicode(), First_color_in_palette, Flip_X_lowlevel(), Flip_Y_lowlevel(), T_IO_Context::Format, FORMAT_CLIPBOARD, FORMAT_GIF, Get_colors_from_brush(), Get_input(), GFX2_WINDOW_STANDARD, Hide_cursor, T_Document::image_is_modified, Init_context_brush(), Init_context_layered_image(), Init_mode_video(), Invert_trame(), Is_shortcut(), Key, Layer_activate(), Layer_preview_off(), Layer_preview_on(), LEFT_SIDE, Load_image(), Load_picture(), T_Document::magnifier_height, T_Document::magnifier_mode, T_Document::magnifier_width, Main, MC_Light, Menu_factor_X, Menu_factor_Y, Menu_is_visible, Menu_status_Y, Menu_tag_colors(), Menu_Y, Mouse_K, Mouse_K_unique, Mouse_X, Mouse_Y, Move_separator(), NB_BUTTONS, NB_SPECIAL_SHORTCUTS, Nibble_brush(), NULL, Old_MX, Old_MY, Operation, OPERATION_COLORPICK, OPERATION_CONTINUOUS_DRAW, OPERATION_DISCONTINUOUS_DRAW, OPERATION_DISTORT_BRUSH, OPERATION_PAN_VIEW, OPERATION_REPLACE, OPERATION_ROTATE_BRUSH, Operation_stack_size, OPERATION_STRETCH_BRUSH, Outline_brush(), Paintbrush_shape, PAINTBRUSH_SHAPE_COLOR_BRUSH, PAINTBRUSH_SHAPE_MONO_BRUSH, PAINTBRUSH_SHAPE_ROUND, T_Document::palette, Pan_shortcut_pressed, Pick_color_in_palette(), Pixel_ratio, Print_in_menu(), Quit_is_required, Quitting, Redraw_layered_image(), Remap_brush(), Remap_general_lowlevel(), Repeat_script(), Reposition_palette(), Resize_height, Resize_width, RIGHT_SIDE, Rotate_180_deg_lowlevel(), Rotate_90_deg(), Run_numbered_script(), Save_image(), Save_picture(), Screen_height, Screen_width, Scroll_magnifier(), Scroll_screen(), Select_button(), T_Document::separator_position, Set_paintbrush_size(), Set_palette(), SHORTCUT_COPY, SHORTCUT_PASTE, Smaller_paintbrush(), SPECIAL_BIGGER_PAINTBRUSH, SPECIAL_BOTTOM_LEFT_ATTACHMENT, SPECIAL_BOTTOM_RIGHT_ATTACHMENT, SPECIAL_BRUSH_DOUBLE, SPECIAL_BRUSH_DOUBLE_HEIGHT, SPECIAL_BRUSH_DOUBLE_WIDTH, SPECIAL_BRUSH_HALVE, SPECIAL_CENTER_ATTACHMENT, SPECIAL_CLICK_RIGHT, SPECIAL_COLORIZE_MENU, SPECIAL_COLORIZE_MODE, SPECIAL_CONTINUOUS_DRAW, SPECIAL_CYCLE_MODE, SPECIAL_DISTORT, SPECIAL_DOT_PAINTBRUSH, SPECIAL_EFFECTS_OFF, SPECIAL_EXCLUDE_COLORS_MENU, SPECIAL_FLIP_X, SPECIAL_FLIP_Y, SPECIAL_GET_BRUSH_COLORS, SPECIAL_GRID_MENU, SPECIAL_GRID_MODE, SPECIAL_HOLD_PAN, SPECIAL_INVERT_SIEVE, SPECIAL_LAYER1_SELECT, SPECIAL_LAYER1_TOGGLE, SPECIAL_LAYER2_SELECT, SPECIAL_LAYER2_TOGGLE, SPECIAL_LAYER3_SELECT, SPECIAL_LAYER3_TOGGLE, SPECIAL_LAYER4_SELECT, SPECIAL_LAYER4_TOGGLE, SPECIAL_LAYER5_SELECT, SPECIAL_LAYER5_TOGGLE, SPECIAL_LAYER6_SELECT, SPECIAL_LAYER6_TOGGLE, SPECIAL_LAYER7_SELECT, SPECIAL_LAYER7_TOGGLE, SPECIAL_LAYER8_SELECT, SPECIAL_LAYER8_TOGGLE, SPECIAL_LOAD_BRUSH, SPECIAL_MASK_MENU, SPECIAL_MASK_MODE, SPECIAL_NEXT_BACKCOLOR, Special_next_backcolor(), SPECIAL_NEXT_FORECOLOR, Special_next_forecolor(), SPECIAL_NEXT_USER_BACKCOLOR, Special_next_user_backcolor(), SPECIAL_NEXT_USER_FORECOLOR, Special_next_user_forecolor(), SPECIAL_NIBBLE, SPECIAL_OUTLINE, SPECIAL_PREVIOUS_BACKCOLOR, Special_previous_backcolor(), SPECIAL_PREVIOUS_FORECOLOR, Special_previous_forecolor(), SPECIAL_PREVIOUS_USER_BACKCOLOR, Special_previous_user_backcolor(), SPECIAL_PREVIOUS_USER_FORECOLOR, Special_previous_user_forecolor(), SPECIAL_QUICK_SHADE_MENU, SPECIAL_QUICK_SHADE_MODE, SPECIAL_RECOLORIZE_BRUSH, SPECIAL_REPEAT_SCRIPT, SPECIAL_ROTATE_180, SPECIAL_ROTATE_90, SPECIAL_ROTATE_ANY_ANGLE, SPECIAL_RUN_SCRIPT_1, SPECIAL_RUN_SCRIPT_10, SPECIAL_RUN_SCRIPT_2, SPECIAL_RUN_SCRIPT_3, SPECIAL_RUN_SCRIPT_4, SPECIAL_RUN_SCRIPT_5, SPECIAL_RUN_SCRIPT_6, SPECIAL_RUN_SCRIPT_7, SPECIAL_RUN_SCRIPT_8, SPECIAL_RUN_SCRIPT_9, SPECIAL_SAVE_BRUSH, SPECIAL_SCROLL_DOWN, SPECIAL_SCROLL_DOWN_FAST, SPECIAL_SCROLL_DOWN_SLOW, SPECIAL_SCROLL_LEFT, SPECIAL_SCROLL_LEFT_FAST, SPECIAL_SCROLL_LEFT_SLOW, SPECIAL_SCROLL_RIGHT, SPECIAL_SCROLL_RIGHT_FAST, SPECIAL_SCROLL_RIGHT_SLOW, SPECIAL_SCROLL_UP, SPECIAL_SCROLL_UP_FAST, SPECIAL_SCROLL_UP_SLOW, SPECIAL_SHADE_MENU, SPECIAL_SHADE_MODE, SPECIAL_SHOW_GRID, SPECIAL_SHOW_HIDE_CURSOR, SPECIAL_SIEVE_MENU, SPECIAL_SIEVE_MODE, SPECIAL_SMALLER_PAINTBRUSH, SPECIAL_SMEAR_MODE, SPECIAL_SMOOTH_MENU, SPECIAL_SMOOTH_MODE, SPECIAL_STENCIL_MENU, SPECIAL_STENCIL_MODE, SPECIAL_STRETCH, SPECIAL_TILEMAP_MENU, SPECIAL_TILEMAP_MODE, SPECIAL_TILING_MENU, SPECIAL_TILING_MODE, SPECIAL_TOP_LEFT_ATTACHMENT, SPECIAL_TOP_RIGHT_ATTACHMENT, SPECIAL_TRANSPARENCY_0, SPECIAL_TRANSPARENCY_1, SPECIAL_TRANSPARENCY_2, SPECIAL_TRANSPARENCY_3, SPECIAL_TRANSPARENCY_4, SPECIAL_TRANSPARENCY_5, SPECIAL_TRANSPARENCY_6, SPECIAL_TRANSPARENCY_7, SPECIAL_TRANSPARENCY_8, SPECIAL_TRANSPARENCY_9, SPECIAL_ZOOM_1, SPECIAL_ZOOM_10, SPECIAL_ZOOM_12, SPECIAL_ZOOM_14, SPECIAL_ZOOM_16, SPECIAL_ZOOM_18, SPECIAL_ZOOM_2, SPECIAL_ZOOM_20, SPECIAL_ZOOM_3, SPECIAL_ZOOM_4, SPECIAL_ZOOM_5, SPECIAL_ZOOM_6, SPECIAL_ZOOM_8, SPECIAL_ZOOM_IN, SPECIAL_ZOOM_IN_MORE, SPECIAL_ZOOM_OUT, SPECIAL_ZOOM_OUT_MORE, Start_operation_stack(), Status_print_palette_color(), Stretch_brush(), Tiling_offset_X, Tiling_offset_Y, Transparency_set(), Unicode_strdup(), Update_rect(), Upload_infos_page(), Window_state, T_Document::X_zoom, Zoom(), and Zoom_set().

Referenced by main().

◆ Draw_menu_button()

void Draw_menu_button	(	byte	btn_number,
		byte	pressed
	)

Draw a menu button, selected or not.

References BUTTON_PAINTBRUSHES, BUTTON_SHAPE_NO_FRAME, BUTTON_SHAPE_RECTANGLE, BUTTON_SHAPE_TRIANGLE_BOTTOM_RIGHT, BUTTON_SHAPE_TRIANGLE_TOP_LEFT, Buttons_Pool, Gfx, T_Toolbar_button::Height, T_Toolbar_button::Icon, icon, MAX_PAINTBRUSH_SIZE, MC_Black, Menu_bars, Menu_factor_X, Menu_factor_Y, Menu_is_visible, T_Gui_skin::Menu_sprite, MENU_SPRITE_WIDTH, Menu_Y, MENUBAR_COUNT, MENUBAR_TOOLS, Paintbrush_height, Paintbrush_offset_X, Paintbrush_offset_Y, Paintbrush_shape, PAINTBRUSH_SHAPE_COLOR_BRUSH, PAINTBRUSH_SHAPE_MONO_BRUSH, Paintbrush_sprite, Paintbrush_width, Pixel_in_menu_and_skin(), T_Menu_Bar::Skin, T_Menu_Bar::Skin_width, Update_rect(), T_Toolbar_button::Width, T_Toolbar_button::X_offset, and T_Toolbar_button::Y_offset.

Referenced by Button_Circle_switch_mode(), Button_Curves_switch_mode(), Button_Draw_switch_mode(), Button_Kill(), Button_Lines_switch_mode(), Button_Page(), Button_Redo(), Button_Reload(), Button_Secondary_palette(), Button_Skins(), Button_Text(), Button_Undo(), Display_paintbrush_in_menu(), Init_program(), Load_picture(), Main_handler(), Select_button(), Set_image_mode(), and Unselect_button().

◆ Unselect_button()

void Unselect_button ( int btn_number )

Deselect a button.

References BUTTON_RELEASED, Buttons_Pool, Draw_menu_button(), NB_BUTTONS, T_Toolbar_button::Pressed, and T_Toolbar_button::Unselect_action.

Referenced by Button_Anim_continuous_next(), Button_Anim_continuous_prev(), Button_Anim_first_frame(), Button_Anim_last_frame(), Button_Anim_next_frame(), Button_Anim_prev_frame(), Button_Anim_time(), Button_Autosave(), Button_Brush(), Button_Brush_FX(), Button_Brush_monochrome(), Button_Clear(), Button_Clear_with_backcolor(), Button_Colorpicker(), Button_Copy_page(), Button_Effects(), Button_Gradients(), Button_Hide_menu(), Button_Invert_foreback(), Button_Kill(), Button_Lasso(), Button_Layer_add(), Button_Layer_down(), Button_Layer_duplicate(), Button_Layer_get_transparent(), Button_Layer_menu(), Button_Layer_merge(), Button_Layer_remove(), Button_Layer_set_transparent(), Button_Layer_up(), Button_Load_or_Save(), Button_Magnify(), Button_Magnify_menu(), Button_Page(), Button_Paintbrush_menu(), Button_Pal_left(), Button_Pal_left_fast(), Button_Pal_right(), Button_Pal_right_fast(), Button_Palette(), Button_Quit(), Button_Redo(), Button_Reload(), Button_Resolution(), Button_Restore_brush(), Button_Safety_resolution(), Button_Secondary_palette(), Button_Settings(), Button_Skins(), Button_Stats(), Button_Text(), Button_Toggle_all_toolbars(), Button_Toggle_toolbar(), Button_Transform_menu(), Button_Undo(), Colorpicker_0_1(), Select_button(), Window_help(), and Zoom_set().

◆ Select_button()

void Select_button	(	int	btn_number,
		byte	click
	)

Select a button and disable all his family (for example, selecting "freehand" unselect "curves", "lines", ...)

References BUTTON_ADJUST, BUTTON_FLOODFILL, BUTTON_GRADRECT, BUTTON_MAGNIFIER, BUTTON_POLYFILL, BUTTON_POLYGONS, BUTTON_PRESSED, BUTTON_RELEASED, BUTTON_SHAPE_TRIANGLE_BOTTOM_RIGHT, BUTTON_SHAPE_TRIANGLE_TOP_LEFT, Buttons_Pool, Display_cursor(), Display_sprite_in_menu(), Draw_menu_button(), T_Toolbar_button::Family, FAMILY_INTERRUPTION, FAMILY_TOOLBAR, Hide_cursor, icon, T_Toolbar_button::Left_action, T_Document::magnifier_mode, Main, MENU_SPRITE_POLYFORM, MENU_SPRITE_REPLACE, NB_BUTTONS, T_Toolbar_button::Pressed, T_Toolbar_button::Right_action, RIGHT_SIDE, Unselect_button(), and Wait_end_of_click().

Referenced by Button_Airbrush_menu(), Button_Magnify_menu(), Button_Palette(), Button_Text(), Init_program(), Load_picture(), Main_handler(), Return_to_draw_mode(), and Zoom_set().

◆ Open_window()

void Open_window	(	word	width,
		word	height,
		const char *	title
	)

Open a GUI window.

Parameters

width	window width (max 320)
height	window height (max 200)
title	window title

The mouse must be shown before calling this function. The mouse is hidden when the function returns.

The function Close_window() must be called afterward.

References Allow_colorcycling, Allow_drag_and_drop(), Cursor_shape, CURSOR_SHAPE_ARROW, Cursor_shape_before_window, GFX2_Log(), GFX2_WARNING, Hide_cursor, Main, MC_Black, MC_Dark, MC_White, MC_Window, Menu_factor_X, Menu_factor_Y, Menu_is_visible, Menu_is_visible_before_window, Menu_Y, Menu_Y_before_window, NULL, Paintbrush_hidden, Paintbrush_hidden_before_window, T_Document::palette, Print_in_window_limited(), Save_background(), Screen_height, Screen_width, Set_palette(), Window_background, Window_display_frame_mono(), Window_display_frame_out(), Window_draggable, Window_dropdown_button_list, Window_height, Window_nb_buttons, Window_normal_button_list, Window_palette_button_list, Window_pos_X, Window_pos_Y, Window_rectangle(), Window_scroller_button_list, Window_special_button_list, Window_width, and Windows_open.

Referenced by Button_Airbrush_menu(), Button_Anim_time(), Button_Brush_container(), Button_Brush_FX(), Button_Colorize_menu(), Button_Constraint_menu(), Button_Copy_page(), Button_Effects(), Button_Gradients(), Button_Grid_menu(), Button_Layer_menu(), Button_Load_or_Save(), Button_Message_initial(), Button_Paintbrush_menu(), Button_Palette(), Button_Quick_shade_menu(), Button_Quit_local_function(), Button_Resolution(), Button_Secondary_palette(), Button_Settings(), Button_Sieve_menu(), Button_Skins(), Button_Smooth_menu(), Button_Stats(), Button_Text(), Button_Tilemap_menu(), Button_Tiling_menu(), Button_Transform_menu(), Confirmation_box(), Dialog_multiple_choice(), Load_SCR(), Menu_shade(), Menu_tag_colors(), Message_out_of_memory(), Requester_window(), Save_C64_window(), Save_image(), Save_MOTO_window(), Tilemap_update(), Verbose_message(), Warning_message(), Window_help(), Window_Histogram(), and Window_set_shortcut().

◆ Close_window()

void Close_window ( void )

Close a window previously open with Open_window()

The mouse must be shown when this functions is called. It is hidden when the function returns.

References Allow_colorcycling, Allow_drag_and_drop(), Check_menu_mode(), Compute_paintbrush_coordinates(), Cursor_shape, Cursor_shape_before_window, Display_all_screen(), Display_menu(), Hide_cursor, Key, Menu_is_visible, Menu_is_visible_before_window, Menu_Y, Menu_Y_before_window, Mouse_K, NULL, Old_MX, Old_MY, Paintbrush_hidden, Paintbrush_hidden_before_window, Restore_background(), Update_window_area, Window_background, Window_dropdown_button_list, Window_dropdown_clear_items(), Window_height, Window_list_button_list, Window_normal_button_list, Window_palette_button_list, Window_pos_X, Window_pos_Y, Window_scroller_button_list, Window_special_button_list, Window_width, and Windows_open.

◆ Open_popup()

void Open_popup	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height
	)

Open a popup window.

Parameters

x_pos	left position
y_pos	top position
width	width of the popup (max 320)
height	height of the popup (max 200)

The mouse cursor must be shown when calling this function. When the function returns it is hidden.

Popup windows are managed as sub-windows. They have their own event loop, widget can be added inside, etc. The differences with plain windows are almost only graphical :

Possibility of fixing position (x_pos, y_pos)
No title
No 3D border, but a flat white border.

References Cursor_shape, CURSOR_SHAPE_ARROW, Cursor_shape_before_window, Menu_factor_X, Menu_factor_Y, Menu_is_visible, Menu_is_visible_before_window, Menu_Y, Menu_Y_before_window, NULL, Paintbrush_hidden, Paintbrush_hidden_before_window, Save_background(), Screen_height, Screen_width, Window_background, Window_draggable, Window_dropdown_button_list, Window_height, Window_nb_buttons, Window_normal_button_list, Window_palette_button_list, Window_pos_X, Window_pos_Y, Window_scroller_button_list, Window_special_button_list, Window_width, and Windows_open.

Referenced by Dropdown_activate(), Init_virtual_keyboard(), and Layer_preview_on().

◆ Close_popup()

◆ Window_draw_normal_bouton()

void Window_draw_normal_bouton	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		const char *	title,
		byte	undersc_letter,
		byte	clickable
	)

References MC_Black, MC_Dark, MC_Light, Print_in_window(), Window_display_frame_generic(), Window_display_frame_mono(), Window_display_frame_out(), and Window_rectangle().

Referenced by Button_Palette(), Button_Resolution(), Window_set_dropdown_button(), Window_set_normal_button(), and Window_set_repeatable_button().

◆ Window_select_normal_button()

void Window_select_normal_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height
	)

References MC_Black, MC_Dark, Update_window_area, and Window_display_frame_generic().

Referenced by Display_effect_state(), Window_dropdown_on_click(), Window_get_button_shortcut(), Window_get_clicked_button(), and Window_normal_button_onclick().

◆ Window_unselect_normal_button()

void Window_unselect_normal_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height
	)

References Update_window_area, and Window_display_frame_out().

Referenced by Display_effect_state(), Window_dropdown_on_click(), Window_get_button_shortcut(), Window_get_clicked_button(), and Window_normal_button_onclick().

◆ Window_draw_palette_bouton()

void Window_draw_palette_bouton	(	word	x_pos,
		word	y_pos
	)

References Window_display_frame(), and Window_rectangle().

Referenced by Button_Palette(), and Window_set_palette_button().

◆ Compute_slider_cursor_length()

void Compute_slider_cursor_length ( T_Scroller_button * button )

References T_Scroller_button::Cursor_length, T_Scroller_button::Length, T_Scroller_button::Nb_elements, and T_Scroller_button::Nb_visibles.

Referenced by Prepare_and_display_filelist(), Scroll_help(), Set_palette_slider(), Window_help(), Window_set_horizontal_scroller_button(), and Window_set_scroller_button().

◆ Window_draw_slider()

void Window_draw_slider ( T_Scroller_button * button )

◆ Window_draw_scroller_button()

void Window_draw_scroller_button ( T_Scroller_button * button )

References T_Scroller_button::Is_horizontal, T_Scroller_button::Length, MC_Black, MC_Dark, MC_Light, T_Scroller_button::Pos_X, T_Scroller_button::Pos_Y, Print_in_window(), Window_display_frame_generic(), Window_display_frame_mono(), Window_display_frame_out(), and Window_draw_slider().

Referenced by Window_set_horizontal_scroller_button(), and Window_set_scroller_button().

◆ Window_input_content()

void Window_input_content	(	T_Special_button *	button,
		const char *	content
	)

References MC_Black, MC_Light, T_Special_button::Pos_X, T_Special_button::Pos_Y, Print_in_window_limited(), and T_Special_button::Width.

Referenced by Button_Airbrush_menu(), Button_Colorize_menu(), Button_Grid_menu(), Button_Quick_shade_menu(), Button_Resolution(), Button_Smooth_menu(), Button_Text(), Button_Tiling_menu(), Load_SCR(), and Menu_shade().

◆ Window_clear_input_button()

void Window_clear_input_button ( T_Special_button * button )

References MC_Light, T_Special_button::Pos_X, T_Special_button::Pos_Y, Update_window_area, T_Special_button::Width, and Window_rectangle().

◆ Window_draw_input_bouton()

void Window_draw_input_bouton	(	word	x_pos,
		word	y_pos,
		word	width_in_characters
	)

References Window_display_frame_in().

Referenced by Window_set_input_button_s().

◆ Window_set_normal_button()

T_Normal_button * Window_set_normal_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		const char *	title,
		byte	undersc_letter,
		byte	clickable,
		word	shortcut
	)

References T_Normal_button::Clickable, T_Normal_button::Height, T_Normal_button::Next, NULL, T_Normal_button::Number, T_Normal_button::Pos_X, T_Normal_button::Pos_Y, T_Normal_button::Repeatable, T_Normal_button::Shortcut, T_Normal_button::Width, Window_draw_normal_bouton(), Window_nb_buttons, and Window_normal_button_list.

Referenced by Button_Airbrush_menu(), Button_Anim_time(), Button_Brush_container(), Button_Brush_FX(), Button_Colorize_menu(), Button_Constraint_menu(), Button_Copy_page(), Button_Effects(), Button_Gradients(), Button_Grid_menu(), Button_Layer_menu(), Button_Load_or_Save(), Button_Message_initial(), Button_Paintbrush_menu(), Button_Palette(), Button_Quick_shade_menu(), Button_Quit_local_function(), Button_Resolution(), Button_Secondary_palette(), Button_Settings(), Button_Sieve_menu(), Button_Skins(), Button_Smooth_menu(), Button_Stats(), Button_Text(), Button_Tilemap_menu(), Button_Tiling_menu(), Button_Transform_menu(), Confirmation_box(), Dialog_multiple_choice(), Load_SCR(), Menu_shade(), Menu_tag_colors(), Message_out_of_memory(), Readline_ex_unicode(), Requester_window(), Save_C64_window(), Save_image(), Save_MOTO_window(), Verbose_message(), Warning_message(), Window_help(), Window_Histogram(), and Window_set_shortcut().

◆ Window_set_repeatable_button()

T_Normal_button * Window_set_repeatable_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		const char *	title,
		byte	undersc_letter,
		byte	clickable,
		word	shortcut
	)

References T_Normal_button::Height, T_Normal_button::Next, NULL, T_Normal_button::Number, T_Normal_button::Pos_X, T_Normal_button::Pos_Y, T_Normal_button::Repeatable, T_Normal_button::Shortcut, T_Normal_button::Width, Window_draw_normal_bouton(), Window_nb_buttons, and Window_normal_button_list.

Referenced by Button_Palette(), Button_Sieve_menu(), and Button_Text().

◆ Window_set_palette_button()

T_Palette_button * Window_set_palette_button	(	word	x_pos,
		word	y_pos
	)

References T_Palette_button::Next, T_Palette_button::Number, T_Palette_button::Pos_X, T_Palette_button::Pos_Y, Window_draw_palette_bouton(), Window_nb_buttons, and Window_palette_button_list.

Referenced by Button_Airbrush_menu(), Button_Gradients(), Button_Palette(), Menu_shade(), and Menu_tag_colors().

◆ Window_clear_tags()

void Window_clear_tags ( void )

References MC_Light, Update_window_area, Window_palette_button_list, and Window_rectangle().

Referenced by Button_Airbrush_menu().

◆ Tag_color_range()

void Tag_color_range	(	byte	start,
		byte	end
	)

References MC_Black, MC_Light, Pixel_in_window(), Update_window_area, Window_palette_button_list, and Window_rectangle().

Referenced by Button_Palette(), Menu_shade(), and Tag_color_gradient_range().

◆ Window_set_scroller_button()

T_Scroller_button * Window_set_scroller_button	(	word	x_pos,
		word	y_pos,
		word	height,
		word	nb_elements,
		word	nb_elements_visible,
		word	initial_position
	)

◆ Window_set_horizontal_scroller_button()

T_Scroller_button * Window_set_horizontal_scroller_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	nb_elements,
		word	nb_elements_visible,
		word	initial_position
	)

References Compute_slider_cursor_length(), T_Scroller_button::Is_horizontal, T_Scroller_button::Length, T_Scroller_button::Nb_elements, T_Scroller_button::Nb_visibles, T_Scroller_button::Next, T_Scroller_button::Number, T_Scroller_button::Pos_X, T_Scroller_button::Pos_Y, T_Scroller_button::Position, Window_draw_scroller_button(), Window_nb_buttons, and Window_scroller_button_list.

Referenced by Button_Gradients(), and Button_Secondary_palette().

◆ Window_set_special_button()

T_Special_button * Window_set_special_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		word	shortcut
	)

References T_Special_button::Height, T_Special_button::Next, T_Special_button::Number, T_Special_button::Pos_X, T_Special_button::Pos_Y, T_Special_button::Shortcut, T_Special_button::Width, Window_nb_buttons, and Window_special_button_list.

Referenced by Button_Load_or_Save(), Button_Resolution(), Button_Settings(), Button_Sieve_menu(), Button_Skins(), Button_Text(), Menu_shade(), Window_help(), Window_Histogram(), and Window_set_input_button_s().

◆ Window_set_input_button_s()

T_Special_button * Window_set_input_button_s	(	word	x_pos,
		word	y_pos,
		word	width_in_characters,
		word	shortcut
	)

References Window_draw_input_bouton(), and Window_set_special_button().

Referenced by Button_Airbrush_menu(), Button_Resolution(), Button_Text(), Button_Transform_menu(), and Window_set_input_button().

◆ Window_set_input_button()

T_Special_button * Window_set_input_button	(	word	x_pos,
		word	y_pos,
		word	width_in_characters
	)

References NULL, and Window_set_input_button_s().

Referenced by Button_Anim_time(), Button_Colorize_menu(), Button_Grid_menu(), Button_Load_or_Save(), Button_Quick_shade_menu(), Button_Smooth_menu(), Button_Tiling_menu(), Button_Transform_menu(), Load_SCR(), Menu_shade(), and Requester_window().

◆ Window_set_dropdown_button()

T_Dropdown_button * Window_set_dropdown_button	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		word	dropdown_width,
		const char *	label,
		byte	display_choice,
		byte	display_centered,
		byte	display_arrow,
		byte	active_button,
		byte	bottom_up
	)

◆ Window_dropdown_add_item()

void Window_dropdown_add_item	(	T_Dropdown_button *	dropdown,
		word	btn_number,
		const char *	label
	)

Adds an item to a dropdown menu.

References T_Dropdown_button::First_item, label, T_Dropdown_choice::Label, T_Dropdown_choice::Next, NULL, and T_Dropdown_choice::Number.

Referenced by Button_Circle_switch_mode(), Button_Constraint_menu(), Button_Draw_switch_mode(), Button_Load_or_Save(), Button_Magnify_menu(), Button_Paintbrush_menu(), Button_Palette(), Button_Resolution(), Button_Skins(), Button_Toggle_toolbar(), Button_Transform_menu(), Dialog_multiple_choice(), Display_bookmark(), Load_SCR(), Save_C64_window(), and Save_MOTO_window().

◆ Window_dropdown_clear_items()

void Window_dropdown_clear_items ( T_Dropdown_button * dropdown )

References T_Dropdown_button::First_item, and T_Dropdown_choice::Next.

Referenced by Button_Circle_switch_mode(), Button_Draw_switch_mode(), Button_Magnify_menu(), Button_Palette(), Button_Toggle_toolbar(), Close_popup(), Close_window(), Display_bookmark(), Load_SCR(), and Save_C64_window().

◆ Dropdown_activate()

T_Dropdown_choice * Dropdown_activate	(	T_Dropdown_button *	button,
		short	off_x,
		short	off_y
	)

Displays a dropped-down menu and handles the UI logic until the user releases a mouse button.

This function then clears the dropdown and returns the selected item, or NULL if the user wasn't highlighting an item when he closed.

References T_Dropdown_button::Bottom_up, Close_popup(), Display_cursor(), T_Dropdown_button::Dropdown_width, T_Dropdown_button::First_item, Get_input(), GFX2_DEBUG, GFX2_Log(), T_Dropdown_button::Height, Hide_cursor, T_Dropdown_choice::Label, MC_Black, MC_Dark, MC_Light, MC_White, Menu_factor_X, Menu_factor_Y, Mouse_K, Mouse_X, Mouse_Y, T_Dropdown_choice::Next, NULL, Open_popup(), T_Dropdown_button::Pos_X, T_Dropdown_button::Pos_Y, Print_in_window(), Screen_height, SHADOW_BOTTOM, SHADOW_RIGHT, Update_window_area, Window_click_in_rectangle(), Window_display_frame_out(), Window_height, Window_pos_X, Window_pos_Y, Window_rectangle(), and Window_width.

Referenced by Button_Circle_switch_mode(), Button_Draw_switch_mode(), Button_Magnify_menu(), Button_Palette(), Button_Toggle_toolbar(), and Window_dropdown_on_click().

◆ Window_set_list_button()

T_List_button * Window_set_list_button	(	T_Special_button *	entry_button,
		T_Scroller_button *	scroller,
		Func_draw_list_item	draw_list_item,
		byte	color_index
	)

References T_List_button::Color_index, T_List_button::Cursor_position, T_List_button::Draw_list_item, T_List_button::Entry_button, T_List_button::List_start, T_List_button::Next, T_List_button::Number, T_List_button::Scroller, Window_list_button_list, and Window_nb_buttons.

Referenced by Button_Skins(), and Button_Text().

◆ Window_redraw_list()

void Window_redraw_list ( T_List_button * list )

◆ Window_click_in_rectangle()

byte Window_click_in_rectangle	(	short	start_x,
		short	start_y,
		short	end_x,
		short	end_y
	)

References Menu_factor_X, Menu_factor_Y, Mouse_X, Mouse_Y, Window_pos_X, and Window_pos_Y.

Referenced by Dropdown_activate(), Wait_click_in_palette(), Wait_click_in_shade_table(), Window_get_clicked_button(), Window_Histogram(), and Window_normal_button_onclick().

◆ Wait_click_in_palette()

short Wait_click_in_palette ( T_Palette_button * button )

◆ Window_normal_button_onclick()

short Window_normal_button_onclick	(	word	x_pos,
		word	y_pos,
		word	width,
		word	height,
		short	btn_number
	)

References Display_cursor(), Get_input(), Hide_cursor, Mouse_K, Window_click_in_rectangle(), Window_select_normal_button(), and Window_unselect_normal_button().

Referenced by Button_Settings(), and Window_get_clicked_button().

◆ Get_color_behind_window()

void Get_color_behind_window	(	byte *	color,
		byte *	click
	)

◆ Window_clicked_button()

short Window_clicked_button ( void )

References Config, T_List_button::Cursor_position, Display_cursor(), T_Config::Double_click_speed, T_List_button::Draw_list_item, T_List_button::Entry_button, Get_input(), GFX2_GetTicks(), Hide_cursor, Input_sticky_control, Key, KEY_DOWN, KEY_END, KEY_HOME, KEY_MOUSEWHEELDOWN, KEY_MOUSEWHEELUP, KEY_PAGEDOWN, KEY_PAGEUP, KEY_UP, T_List_button::List_start, Menu_factor_X, Menu_factor_Y, Mouse_K, Mouse_X, Mouse_Y, Move_window(), T_Scroller_button::Nb_elements, T_Scroller_button::Nb_visibles, T_List_button::Next, NULL, T_Scroller_button::Number, T_Special_button::Number, T_List_button::Number, T_Special_button::Pos_X, T_Special_button::Pos_Y, T_Scroller_button::Position, T_List_button::Scroller, Window_attribute2, Window_draggable, Window_draw_slider(), Window_get_button_shortcut(), Window_get_clicked_button(), Window_height, Window_list_button_list, Window_pos_X, Window_pos_Y, Window_redraw_list(), and Window_width.

Referenced by Button_Airbrush_menu(), Button_Anim_time(), Button_Brush_container(), Button_Brush_FX(), Button_Colorize_menu(), Button_Constraint_menu(), Button_Copy_page(), Button_Effects(), Button_Gradients(), Button_Grid_menu(), Button_Layer_menu(), Button_Load_or_Save(), Button_Paintbrush_menu(), Button_Palette(), Button_Quick_shade_menu(), Button_Quit_local_function(), Button_Resolution(), Button_Secondary_palette(), Button_Settings(), Button_Sieve_menu(), Button_Skins(), Button_Smooth_menu(), Button_Stats(), Button_Text(), Button_Tilemap_menu(), Button_Tiling_menu(), Button_Transform_menu(), Confirmation_box(), Dialog_multiple_choice(), Load_SCR(), Menu_shade(), Menu_tag_colors(), Message_out_of_memory(), Readline_ex_unicode(), Requester_window(), Save_C64_window(), Save_image(), Save_MOTO_window(), Verbose_message(), Warning_message(), Window_help(), Window_Histogram(), and Window_set_shortcut().

◆ Button_under_mouse()

int Button_under_mouse ( void )

Guess the number of the button that was just clicked.

References BUTTON_SHAPE_NO_FRAME, BUTTON_SHAPE_RECTANGLE, BUTTON_SHAPE_TRIANGLE_BOTTOM_RIGHT, BUTTON_SHAPE_TRIANGLE_TOP_LEFT, Buttons_Pool, T_Toolbar_button::Height, T_Menu_Bar::Last_button_index, Menu_bars, Menu_factor_X, Menu_factor_Y, Menu_Y, MENUBAR_COUNT, Mouse_X, Mouse_Y, and T_Toolbar_button::Y_offset.

Referenced by Button_Help(), Button_Select_backcolor(), Button_Select_forecolor(), and Main_handler().

◆ Window_get_button_shortcut()

◆ Window_get_clicked_button()

short Window_get_clicked_button ( void )

Referenced by Button_Effects(), Button_Message_initial(), and Window_clicked_button().

◆ Remap_window_backgrounds()

void Remap_window_backgrounds	(	const byte *	conversion_table,
		int	Min_Y,
		int	Max_Y
	)

Remaps all the colors from the window background buffers from row Min_Y to row Max_Y.

References T_Window::Height, Max_Y, Menu_factor_X, Menu_factor_Y, Min_Y, Pixel_width, T_Window::Width, Window_background, Window_stack, and Windows_open.

Referenced by Remap_image_highlevel().

◆ Remap_UI_in_window_backgrounds()

void Remap_UI_in_window_backgrounds ( const byte * conversion_table )

Remaps only UI elements (Windows + Menu) in all window background buffers.

References T_Window::Height, Menu_factor_X, Menu_factor_Y, Menu_is_visible_before_window, Menu_Y_before_window, Pixel_width, T_Window::Pos_X, T_Window::Pos_Y, Screen_width, T_Window::Width, Window_background, Window_stack, and Windows_open.

Referenced by Remap_screen_after_menu_colors_change().

◆ Pixel_background()

void Pixel_background	(	int	x_pos,
		int	y_pos,
		byte	color
	)

Draw a pixel in a saved screen block (when you sort colors in the palette, for example)

References Menu_factor_X, Pixel_width, Window_background, and Window_width.

Referenced by Display_menu_palette_avoiding_window().

◆ Status_print_palette_color()

void Status_print_palette_color ( byte color )

Updates the status bar line with a color number.

Used when hovering the menu palette.

References BUTTON_CHOOSE_COL, Buttons_Pool, Encode_component(), Main, T_Document::palette, and Print_in_menu().

Referenced by Button_Select_backcolor(), Button_Select_forecolor(), and Main_handler().

◆ Delay_with_active_mouse()

void Delay_with_active_mouse ( int delay )

Puts the user in wait mode for the specified time ( in 1/100s), though the mouse still works.

References Get_input(), GFX2_GetTicks(), and Mouse_K.

Referenced by Error_function(), Window_get_button_shortcut(), and Window_get_clicked_button().

◆ Compute_menu_offsets()

void Compute_menu_offsets ( void )

Based on which toolbars are visible, updates their offsets and computes Menu_height and Menu_Y.

References T_Menu_Bar::Height, Menu_bars, Menu_factor_Y, Menu_height, Menu_Y, MENUBAR_COUNT, Screen_height, and T_Menu_Bar::Top.

Referenced by Init_program(), and Set_bar_visibility().

◆ Set_bar_visibility()

void Set_bar_visibility	(	word	bar,
		int	visible,
		int	with_redraw
	)

Shows or hides a tolbar from the menu.

If with_redraw is set to zero, the caller should redraw itself using Display_menu() and Display_all_screen().

References Compute_limits(), Compute_magnifier_data(), Compute_menu_offsets(), Compute_paintbrush_coordinates(), Display_all_screen(), Display_menu(), T_Document::image_height, T_Document::magnifier_mode, Main, Menu_bars, T_Document::offset_Y, Position_screen_according_to_zoom(), Screen_height, Spare, and T_Menu_Bar::Visible.

Referenced by Button_Toggle_all_toolbars(), Button_Toggle_toolbar(), and Check_menu_mode().

◆ Check_menu_mode()

int Check_menu_mode ( void )

Checks if the current menu toolbars suit the current image type : layered vs anim.

If they don't fit, swap the toolbars and return 1: The caller is then responsible for refreshing the screen by calling Display_menu() and Display_all_screen()

References T_Document::backups, T_Page::Image_mode, IMAGE_MODE_ANIMATION, Main, Menu_bars, MENUBAR_ANIMATION, MENUBAR_LAYERS, T_List_of_pages::Pages, and Set_bar_visibility().

Referenced by Button_Constraint_menu(), Button_Message_initial(), Button_Page(), Button_Redo(), Button_Reload(), Button_Toggle_all_toolbars(), Button_Undo(), Close_window(), Init_program(), Load_picture(), and Main_handler().

Functions
