GrafX2: c64formats.c File Reference

Formats for the Commodore 64. More...

#include <stdlib.h>
#include <string.h>
#include <zlib.h>
#include "engine.h"
#include "screen.h"
#include "windows.h"
#include "input.h"
#include "help.h"
#include "fileformats.h"
#include "loadsavefuncs.h"
#include "io.h"
#include "misc.h"
#include "oldies.h"
#include "c64load.h"
#include "keycodes.h"
#include "packbits.h"
#include "gfx2mem.h"
#include "gfx2log.h"
#include "c64picview_inc.h"

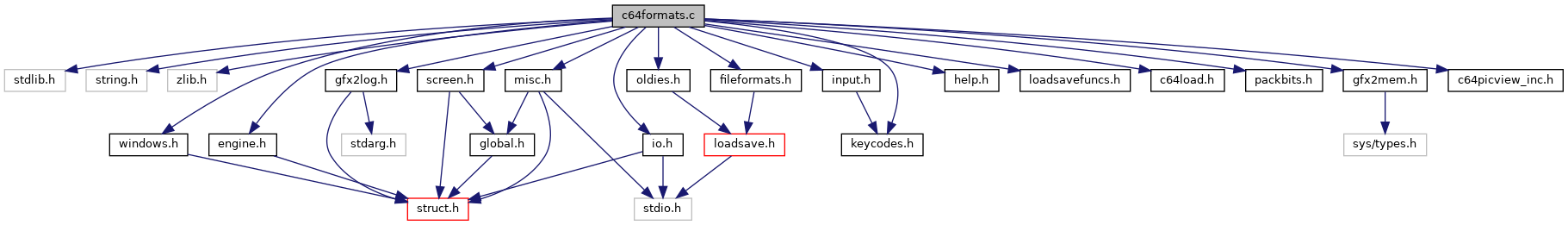

Include dependency graph for c64formats.c:

Macros
#define	READU32LE(p) ((p)[0] \| (p)[1] << 8 \| (p)[2] << 16 \| (p)[3] << 24)

Enumerations
enum	c64_format { F_invalid = -1 , F_hires = 0 , F_multi = 1 , F_bitmap = 2 , F_fli = 3 }
	C64 file formats. More...

Functions
static long	C64_unpack_doodle (byte **file_buffer, long file_size)
	Unpack doodle/koala painter 2 data. More...

void	Test_C64 (T_IO_Context context, FILE file)
	Test for a C64 picture file. More...

void	Test_PRG (T_IO_Context context, FILE file)
	Test for a C64 auto-load machine language program which could be a picture. More...

static void	Load_C64_hires (T_IO_Context context, byte bitmap, byte *screen_ram)
	Load C64 hires (320x200) More...

static void	Load_C64_multi (T_IO_Context context, byte bitmap, byte screen_ram, byte color_ram, byte background)
	Load C64 multicolor (160x200) More...

void	Load_C64_fli (T_IO_Context context, byte bitmap, byte screen_ram, byte color_ram, byte *background)
	Loads a C64 FLI (Flexible Line Interpretation) picture. More...

static long	C64_unpack_get_length (const byte *buffer, long input_size, byte RLE_code, int order)
	Count the length of the unpacked data. More...

static void	C64_unpack (byte unpacked, const byte buffer, long input_size, byte RLE_code, int order)
	unpack RLE packed data More...

static long	C64_unpack_amica (byte **file_buffer, long file_size)
	Unpack the Amica Paint RLE packing. More...

static long	C64_unpack_draz (byte **file_buffer, long file_size)
	Unpack the DRAZPAINT RLE packing. More...

void	Load_C64 (T_IO_Context *context)
	Load C64 pictures formats. More...

void	Load_PRG (T_IO_Context *context)
	Load C64 autoload pictures. More...

static int	Save_C64_window (enum c64_format saveFormat, byte saveWhat, word *loadAddr)
	Display the dialog for C64 save parameters. More...

static int	Encode_C64_hires (T_IO_Context context, byte bitmap, byte *screen_ram)
	Encode a C64 HiRes Bitmap picture. More...

static int	Save_C64_hires (T_IO_Context *context, byte saveWhat, word loadAddr)
	Save a C64 hires picture. More...

int	Save_C64_fli_monolayer (T_IO_Context *context, byte saveWhat, word loadAddr)
	Save a C64 FLI (Flexible Line Interpretation) picture. More...

static int	Encode_C64_multicolor (T_IO_Context context, byte bitmap, byte screen_ram, byte color_ram, byte *background)
	Encode a picture in the C64 Multicolor bitmap format. More...

int	Save_C64_multi (T_IO_Context *context, byte saveWhat, word loadAddr)
	Save a C64 multicolor picture. More...

int	Save_C64_fli (T_IO_Context *context, byte saveWhat, word loadAddr)
	Save a C64 FLI (Flexible Line Interpretation) picture. More...

void	Save_C64 (T_IO_Context *context)
	Save C64 picture. More...

static int	C64_color_ram_pack (FILE f, const byte data, int count)
	Pack a stream of nibbles (ignore the high 4 bits) to a file. More...

void	Save_PRG (T_IO_Context *context)
	Save autoloading C64 picture. More...

void	Test_GPX (T_IO_Context context, FILE file)

void	Load_GPX (T_IO_Context *context)

Variables
static const char *	c64_format_names []
	C64 file formats names. More...

Detailed Description

Formats for the Commodore 64.

Macro Definition Documentation

◆ READU32LE

#define READU32LE ( p ) ((p)[0] | (p)[1] << 8 | (p)[2] << 16 | (p)[3] << 24)

Enumeration Type Documentation

◆ c64_format

enum c64_format

C64 file formats.

Enumerator
F_invalid
F_hires	320x200
F_multi	160x200
F_bitmap	320x200 monochrome
F_fli	FLI (Flexible Line Interpretation)

Function Documentation

◆ C64_unpack_doodle()

static long C64_unpack_doodle	(	byte **	file_buffer,
		long	file_size
	)

static

Unpack doodle/koala painter 2 data.

Returns: the unpacked data size or -1 in case of error

References C64_unpack(), C64_unpack_get_length(), GFX2_DEBUG, GFX2_Log(), GFX2_malloc, and NULL.

Referenced by Load_C64(), and Test_C64().

◆ Load_C64_hires()

static void Load_C64_hires	(	T_IO_Context *	context,
		byte *	bitmap,
		byte *	screen_ram
	)

static

Load C64 hires (320x200)

Parameters

context	the IO context
bitmap	the bitmap RAM (8000 bytes)
screen_ram	the screen RAM (1000 bytes)

If screen_ram is NULL, uses default C64 basic colors

References NULL, and Set_pixel().

Referenced by Load_C64(), and Load_PRG().

◆ Load_C64_multi()

static void Load_C64_multi	(	T_IO_Context *	context,
		byte *	bitmap,
		byte *	screen_ram,
		byte *	color_ram,
		byte	background
	)

static

Load C64 multicolor (160x200)

Parameters

context	the IO context
bitmap	the bitmap RAM (8000 bytes)
screen_ram	the screen RAM (1000 bytes)
color_ram	the color RAM (1000 bytes)
background	the background color

References Set_pixel().

Referenced by Load_C64(), Load_GPX(), and Load_PRG().

◆ Load_C64_fli()

void Load_C64_fli	(	T_IO_Context *	context,
		byte *	bitmap,
		byte *	screen_ram,
		byte *	color_ram,
		byte *	background
	)

Loads a C64 FLI (Flexible Line Interpretation) picture.

Sets 4 layers :

Layer 0 : filled with background colors (1 per line)
Layer 1 : "Color RAM" 4x8 blocks
Layer 2 : pixels (From Screen RAMs + Bitmap)
Layer 3 : Transparency layer filled with color 16

Parameters

context	the IO context
bitmap	8000 bytes buffer
screen_ram	8 x 1024 bytes buffers
color_ram	1000 byte buffer
background	200 byte buffer

References CONTEXT_MAIN_IMAGE, NULL, Set_loading_layer(), Set_pixel(), and T_IO_Context::Type.

Referenced by Load_C64(), and Load_PRG().

◆ C64_unpack_get_length()

static long C64_unpack_get_length	(	const byte *	buffer,
		long	input_size,
		byte	RLE_code,
		int	order
	)

static

Count the length of the unpacked data.

RLE encoding is either ESCAPE CODE, COUNT, VALUE or ESCAPE CODE, VALUE, COUNT

Parameters

buffer	the packed data
input_size	the packed data byte count
RLE_code	the escape code
order	0 for ESCAPE, COUNT, VALUE, 1 for ESCAPE, VALUE, COUNT

Returns: the unpacked data byte count

Referenced by C64_unpack_amica(), C64_unpack_doodle(), and C64_unpack_draz().

◆ C64_unpack()

static void C64_unpack	(	byte *	unpacked,
		const byte *	buffer,
		long	input_size,
		byte	RLE_code,
		int	order
	)

static

unpack RLE packed data

RLE encoding is either ESCAPE CODE, COUNT, VALUE or ESCAPE CODE, VALUE, COUNT

Parameters

unpacked	buffer to received unpacked data
buffer	the packed data
input_size	the packed data byte count
RLE_code	the escape code
order	0 for ESCAPE, COUNT, VALUE, 1 for ESCAPE, VALUE, COUNT

Referenced by C64_unpack_amica(), C64_unpack_doodle(), and C64_unpack_draz().

◆ C64_unpack_amica()

static long C64_unpack_amica	(	byte **	file_buffer,
		long	file_size
	)

static

Unpack the Amica Paint RLE packing.

Parameters

[in,out]	file_buffer	will contain the unpacked buffer on return
[in]	file_size	packed buffer size

Returns: the unpacked data size or -1 in case of error

Ref:

http://codebase64.org/doku.php?id=base:c64_grafix_files_specs_list_v0.03

References C64_unpack(), C64_unpack_get_length(), GFX2_DEBUG, GFX2_Log(), GFX2_malloc, and NULL.

Referenced by Load_C64().

◆ C64_unpack_draz()

static long C64_unpack_draz	(	byte **	file_buffer,
		long	file_size
	)

static

Unpack the DRAZPAINT RLE packing.

Parameters

[in,out]	file_buffer	will contain the unpacked buffer on return
[in]	file_size	packed buffer size

Returns: the unpacked data size or -1 in case of error

Ref:

References C64_unpack(), C64_unpack_get_length(), GFX2_DEBUG, GFX2_Log(), GFX2_malloc, and NULL.

Referenced by Load_C64().

◆ Save_C64_window()

static int Save_C64_window	(	enum c64_format *	saveFormat,
		byte *	saveWhat,
		word *	loadAddr
	)

static

Display the dialog for C64 save parameters.

Parameters

[in,out]	saveFormat	one of the C64 mode from c64_format
[in,out]	saveWhat	0=All, 1=Only bitmap, 2=Only Screen RAM, 3=Only color RAM
[in,out]	loadAddr	actual load address or 0 for "None"

Returns: true to proceed, false to abort

References BUTTON_HELP, BUTTON_SAVE, c64_format_names, Close_window(), Display_cursor(), F_bitmap, F_fli, F_hires, F_multi, format, GFX2_DEBUG, GFX2_Log(), Is_shortcut(), Key, KEY_ESCAPE, KEY_RETURN, LEFT_SIDE, MC_Dark, MC_Light, Open_window(), Print_in_window(), Update_window_area, Window_attribute2, Window_clicked_button(), Window_dropdown_add_item(), Window_dropdown_clear_items(), Window_height, Window_help(), Window_set_dropdown_button(), Window_set_normal_button(), and Window_width.

Referenced by Save_C64().

◆ Encode_C64_hires()

static int Encode_C64_hires	(	T_IO_Context *	context,
		byte *	bitmap,
		byte *	screen_ram
	)

static

Encode a C64 HiRes Bitmap picture.

320x200 pixels, with only 2 different colors per 8x8 block.

8000 bytes bitmap, 1000 bytes screen RAM

References c64state::bitmap, Get_pixel(), Warning_message(), and Warning_with_format().

Referenced by Save_C64_hires(), and Save_PRG().

◆ Save_C64_hires()

static int Save_C64_hires	(	T_IO_Context *	context,
		byte	saveWhat,
		word	loadAddr
	)

static

Save a C64 hires picture.

c64 hires is 320x200 with only 2 colors per 8x8 block.

References c64state::bitmap, Encode_C64_hires(), File_error, Open_file_write(), Warning_message(), Write_bytes(), and Write_word_le().

Referenced by Save_C64().

◆ Save_C64_fli_monolayer()

int Save_C64_fli_monolayer	(	T_IO_Context *	context,
		byte	saveWhat,
		word	loadAddr
	)

Save a C64 FLI (Flexible Line Interpretation) picture.

This function is able to save a one layer picture, by finding itself the background colors and color RAM value to be used.

The algorithm is :

first choose the lowest value for all possible background colors for each line
first the lowest value from the possible colors for color RAM
encode bitmap and screen RAMs

The algorithm can fail by picking a "wrong" background color for a line, that make the choice for the color RAM value of one of the 40 blocks impossible.

Parameters

context	the IO context
saveWhat	what part of the data to save
loadAddr	The load address

References c64state::bitmap, C64_pixels_to_FLI(), File_error, Open_file_write(), T_IO_Context::Pitch, T_IO_Context::Target_address, Warning_message(), Write_bytes(), and Write_word_le().

Referenced by Save_C64().

◆ Encode_C64_multicolor()

static int Encode_C64_multicolor	(	T_IO_Context *	context,
		byte *	bitmap,
		byte *	screen_ram,
		byte *	color_ram,
		byte *	background
	)

static

Encode a picture in the C64 Multicolor bitmap format.

8000 bytes bitmap, 1000 bytes screen RAM and 1000 bytes color RAM :

BITS COLOR INFORMATION COMES FROM 00 Background color #0 (screen color) 01 Upper 4 bits of Screen RAM 10 Lower 4 bits of Screen RAM 11 Color RAM nybble (nybble = 1/2 byte = 4 bits)

References c64state::bitmap, Get_pixel(), GFX2_DEBUG, GFX2_Log(), Warning_message(), and Warning_with_format().

Referenced by Save_C64_multi(), and Save_PRG().

◆ Save_C64_multi()

int Save_C64_multi	(	T_IO_Context *	context,
		byte	saveWhat,
		word	loadAddr
	)

Save a C64 multicolor picture.

Parameters

context	the IO context
saveWhat	what part of the data to save
loadAddr	The load address

References c64state::bitmap, Encode_C64_multicolor(), File_error, NULL, Open_file_write(), Warning_message(), Write_byte(), Write_bytes(), and Write_word_le().

Referenced by Save_C64().

◆ Save_C64_fli()

int Save_C64_fli	(	T_IO_Context *	context,
		byte	saveWhat,
		word	loadAddr
	)

Save a C64 FLI (Flexible Line Interpretation) picture.

This function need a 3 layer image :

layer 0 is background colors
layer 1 is color RAM values (4x8 blocks)
layer 2 is the actual picture

Parameters

context	the IO context
saveWhat	what part of the data to save
loadAddr	The load address

References C64_FLI(), File_error, Open_file_write(), Warning_message(), Write_bytes(), and Write_word_le().

Referenced by Save_C64().

◆ C64_color_ram_pack()

static int C64_color_ram_pack	(	FILE *	f,
		const byte *	data,
		int	count
	)

static

Pack a stream of nibbles (ignore the high 4 bits) to a file.

This is designed to pack the color RAM data for VIC-II, as the color RAM is only 4 bits.

The output format is a stream of bytes of the following format : CD C = (16 - count), D = DATA (4bits)

Returns: the output stream size, -1 for error

References Write_byte().

Referenced by Save_PRG().

Variable Documentation

◆ c64_format_names

const char* c64_format_names[]

static

Initial value:

= {
  "Hires",
  "Multicolor",
  "Bitmap",
  "FLI"
}

C64 file formats names.

Referenced by Load_C64(), and Save_C64_window().

Macros

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ READU32LE

Enumeration Type Documentation

◆ c64_format

Function Documentation

◆ C64_unpack_doodle()

◆ Load_C64_hires()

◆ Load_C64_multi()

◆ Load_C64_fli()

◆ C64_unpack_get_length()

◆ C64_unpack()

◆ C64_unpack_amica()

◆ C64_unpack_draz()

◆ Save_C64_window()

◆ Encode_C64_hires()

◆ Save_C64_hires()

◆ Save_C64_fli_monolayer()

◆ Encode_C64_multicolor()

◆ Save_C64_multi()

◆ Save_C64_fli()

◆ C64_color_ram_pack()

Variable Documentation

◆ c64_format_names
